Podgortsy

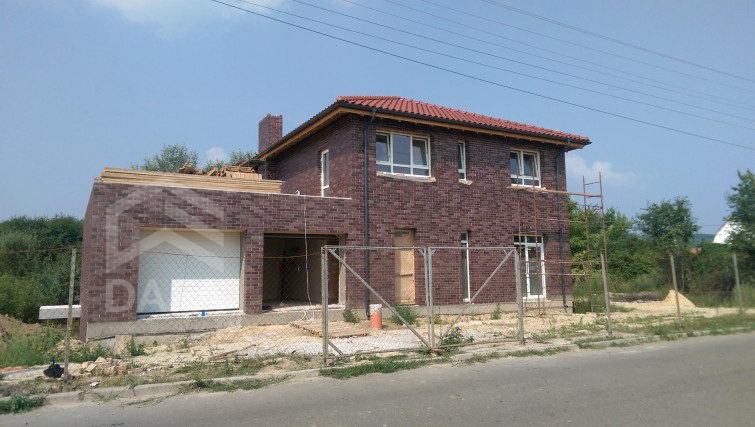

Private house.
Location: p. Pidhirtsi, Kyiv region.
Materials used:

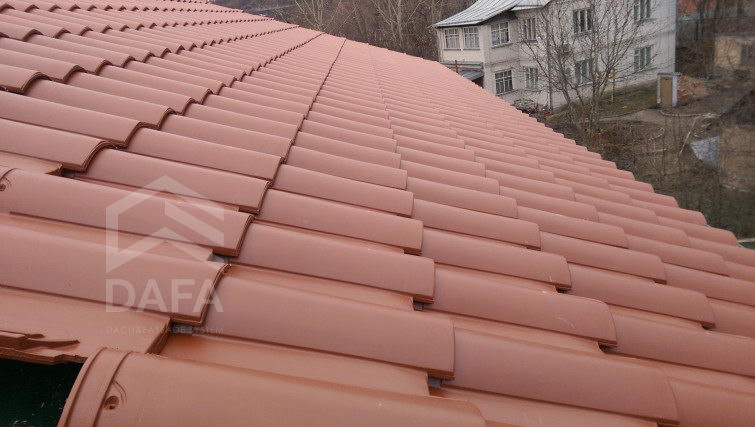

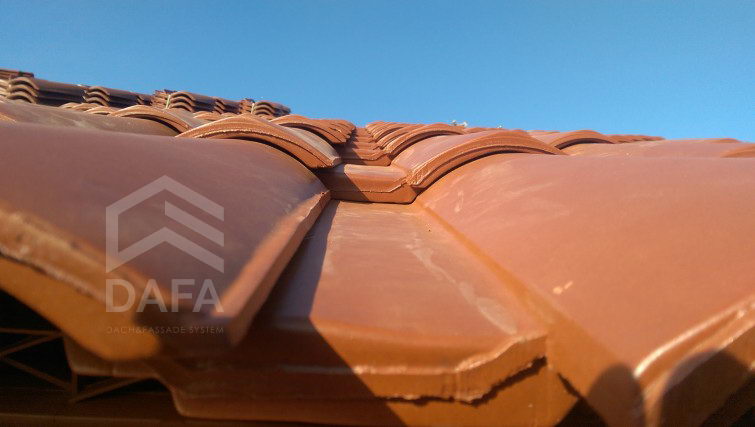

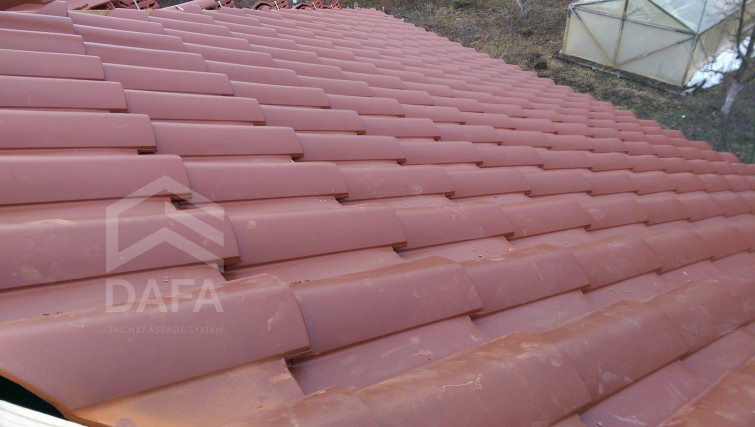

  • Ceramic tile Tondach , model tile Venus (Croatia), color – red engobe.
  • Waterproofing - efficient heat diffusion membrane Dorken (Germany) Delta Vent S (150 gr./m2).
  • The sealing strip under the guide rail Dorken (Germany) Delta Schaumband SB 60.

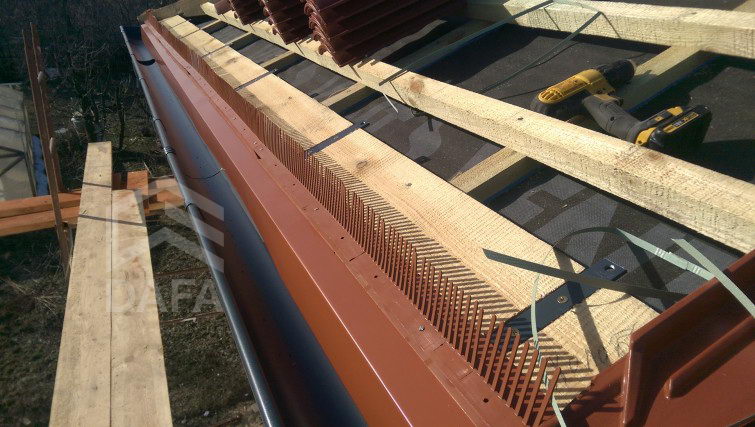

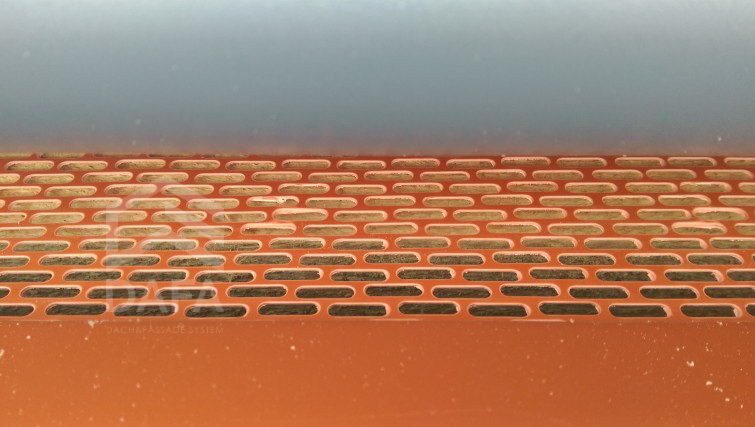

  • Accessories for installation of ceramic tile (holder lumber,fixtures, ventilation belt of the ridge, the ridges overhang, etc.) – IVT (Germany).

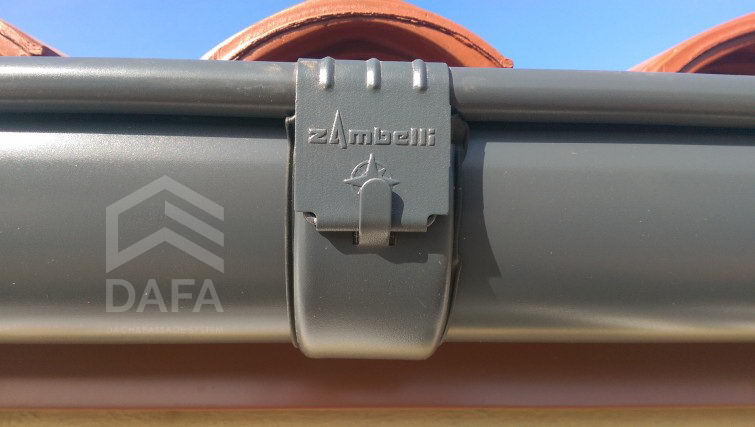

  • Metal gutter system Zambelli (Germany), diameter 127 mm gutter, the gutter system color RAL 7016 (anthracite) cover Robust.

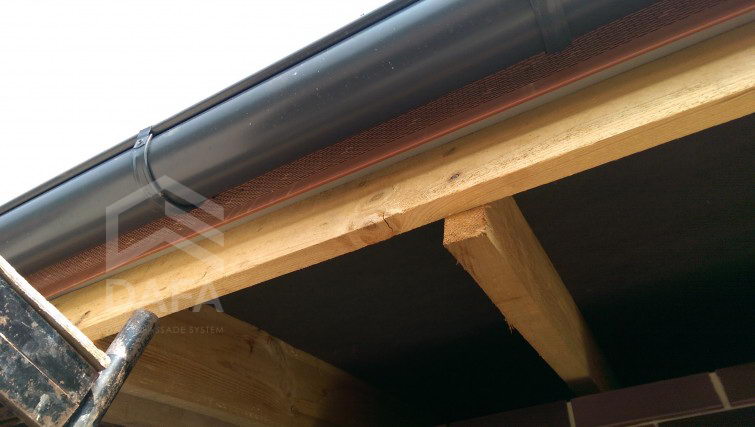

Installation of the drainage system was carried out on long holders of the chute, to maintain the ventilation gap in the roof space (recommendations of the German Union of roofers –ZVDN ).

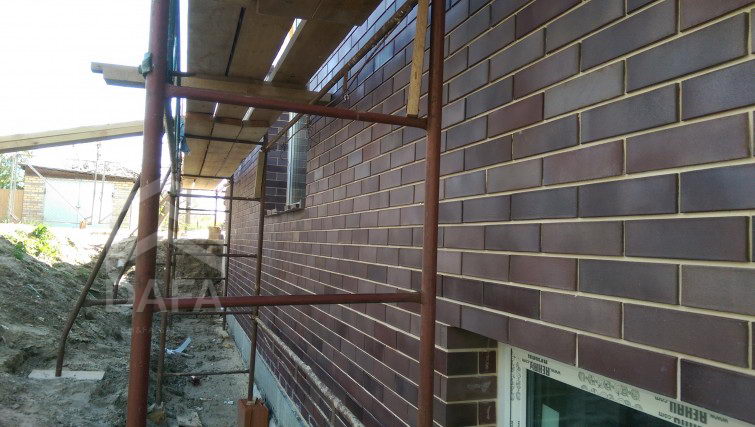

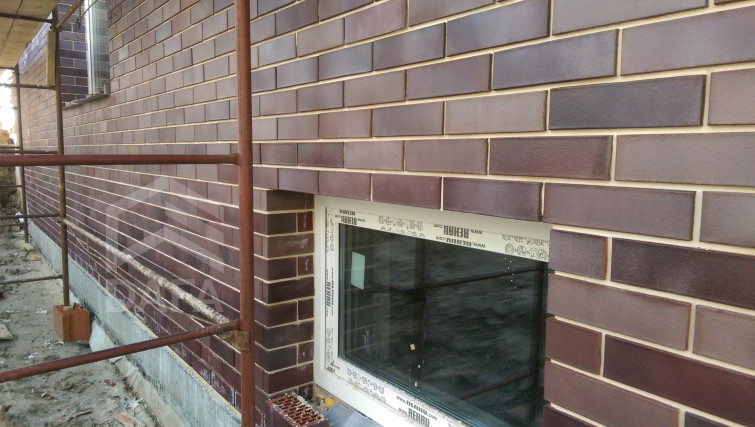

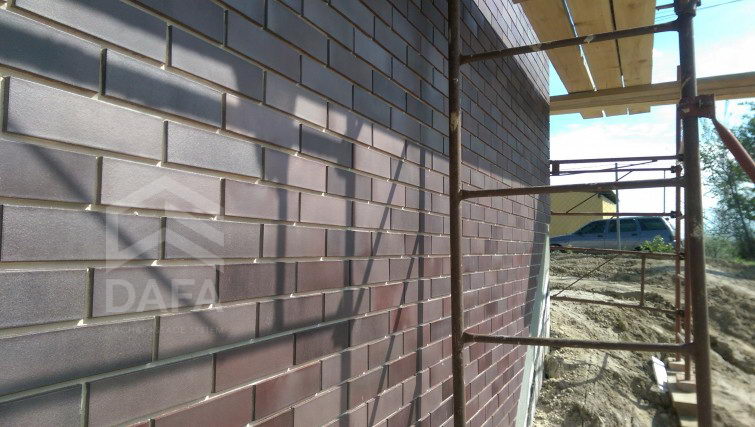

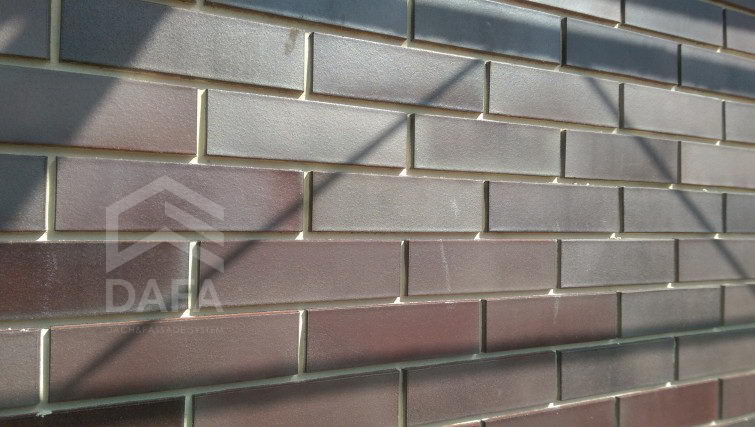

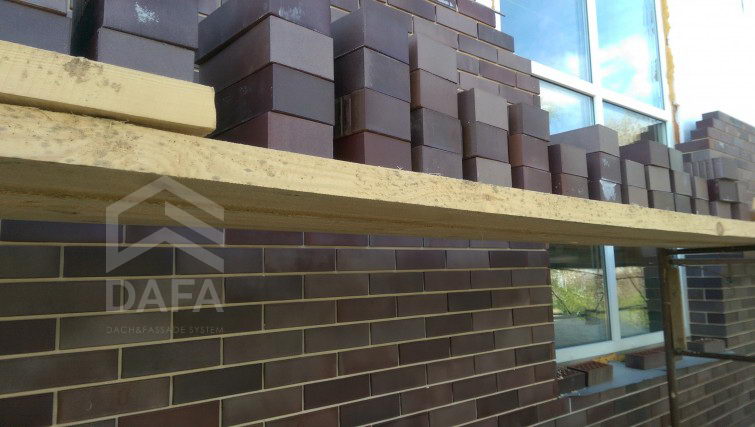

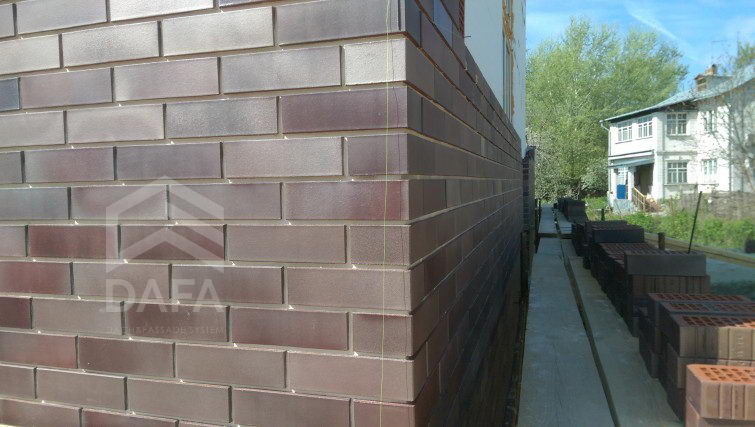

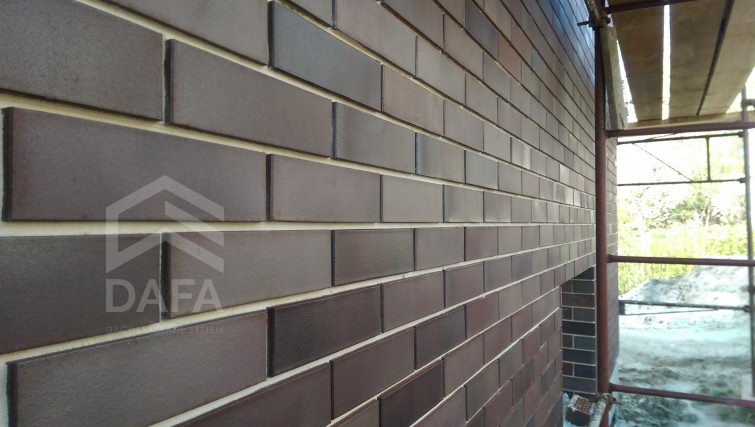

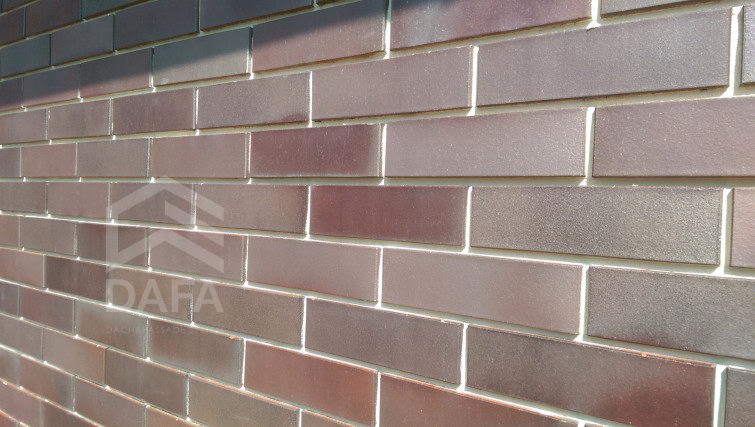

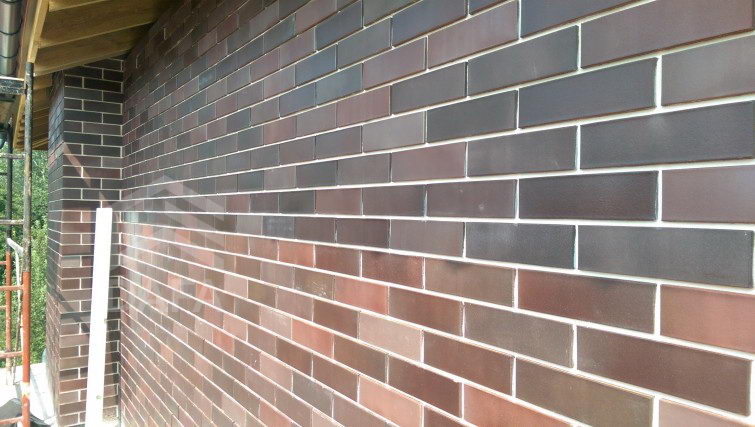

  • The facade is made of clinker ceramic brick Roben (Poland) Adelajda , brick format NF (240 x 115 x 71 mm).
Categories of completed work
Waterproofing, Drainage system
Materials on this object
Diffusion membrane
Dorken
System adhesives and sealants
Dorken
Drainage system
Zambelli
